Fast speed 3060 4060 Stainless Steel Plate Automatic Cutting,Sheet Metal Gantry Cnc Plasma Flame /plasma cutter made in china

  • 1 - 1 Sets
    $6,150.00
  • 2 - 2 Sets
    $6,050.00
  • 3 - 3 Sets
    $5,950.00
  • >=4 Sets
    $5,850.00
Model Number:
LXP4060
Shipping:
Support Sea freight · Land freight
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China, Shandong, China (Mainland)
Brand Name:
JNLINK
Condition:
New, New
Type:
CNC Plasma Cutters
Voltage:
380V(optional 220V), 3 phase 380V/optional 220V
Rated Power:
8.5KW, 63A/100A/160A/200A
Dimension(L*W*H):
4000*6000mm
Weight:
1500kg
Certification:
CE ISO, CE ISO
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
none
Showroom Location:
none
Dimension:
4000*6000mm
Warranty:
2 years, 2 Years
Color:
as your requirements
Model Number:
LXP4060
Control system:
Starfire+THC Control System
Supply Ability
Supply Ability:
150 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard plywood case
Port
qingdao port

Fast speed 3060 4060 Stainless Steel Plate Automatic Cutting,Sheet Metal Gantry Cnc Plasma Flame /plasma cutter made in china



Product Description



>> Features:

1.Welded lathe bed of thick profiled steel, more solid and stable.

2.Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath.The level difference of platform remains in 0-1.5mm.

3.Advanced material inclined discharging design.

4. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.

5. Support Fastcam software such as the standard G code path generated file can also be read by software conversion software such as AUTOCAD generated DXF formats. U disk exchange

control system processing files, easy to operate.

6. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.

>> Applications:

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc

Application Industry:Sheet metal, kitchenware, components, decorations industry

>> Technical Parameters:


  ModelGantry plasma/flame cutting machine
Cross Beam Length(X axis)

4000mm

(can be customed as user's demand)

Longitudinal Rail Length(Y axis)

6000mm

(Rail can be customed as user's demand)

Effective Cutting Width (X axis)

2200mm ~ 6200mm
(can be customed as user's demand)

Cutting ModeFlame only; Plasma only; Flame and Plasma
Drive ModeBilateral-side
Drive MethodRack and pinion drive for X and Y axes
Flame Cutting Thickness5-200mm
Cutting Speed0-12000mm per minute
Moving Precision0.01mm per step
Nesting Software (option)FASTCAM
Power supplierChinese huayuan power supplier(optional USA power supplier)

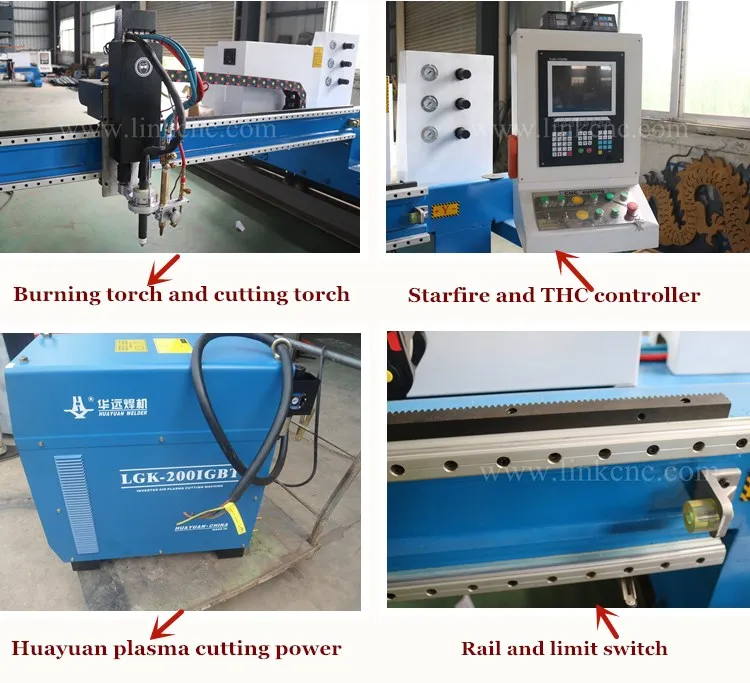

>> Detailed Parts:


Packaging & Shipping



Packing:in the standard plywood case
Delivery:by truck,sea or train
Company Information

 We have 15 years experience in producing and selling plasma machine.Welcome to our factory to check the machine.



This is the CE certificate of the plasma machine quality.



These are some customer pictures.

>>After-sales Warranty:

1.2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine.

5.Machine has been tested and adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.

6.Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.

7.if you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.
