New model spindel motor for cnc router 5.5kw cnc router mdf 2030 cnc router made in china with CE certification

FOB Reference Price:Get Latest Price
$9,300.00 - $9,500.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
JNLINK
Model Number:
LXS2030
Voltage:
220V/380V
Dimension(L*W*H):
4500x2500x1550mm
Certification:
CE ISO
Product name:
LXS2030 cnc router
Working table:
T-slot+stainess steel water thank
Rails:
Taiwan Hiwin Linear Square Rails
Motor:
Stepper motor 450B
Driver:
Leadshine driver M860
Inverter:
Fuling Inverter
Working area:
2000*3000mm
Control system:
NC Studio
Spindle:
5.5kw Chinese top Water Cooling Spindle
Transmission:
X,Y gear transmission,Z ball screw transmission
Weight:
1850kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
5.5KW
Supply Ability
Supply Ability:
150 Set/Sets per Week
Packaging & Delivery
Packaging Details
plywood case
Port
Qingdao
Lead Time :
7-12 working days

New model spindel motor for cnc router 5.5kw cnc router mdf 2030 cnc router made in china with CE certification

https://lxsk.en.alibaba.com/?spm=a2700.7756200.1998619056.7.UJRRab



Product Description

Machine pictures



Machine features





Technology parameter

Description

Parameter LXS2030

X,Y,Z working area

2000x3000x200mm

X,Y,Z Traveling positioning accuracy

±0.03/300mm

X,Y,Z Repositioning positioning accuracy

±0.03mm

Lathe bed frame

Steel square tubes,Lathe bed steel pipe thickness 12mm

X,Y Structure

Rack drive and Taiwan HIWIN guide

Z Structure

TAIWAN Ball screw and Taiwan HIWIN guide

Drive motors

Stepper motors

Table surface

T-slot table

Max power comsumption

(without spindle)2.0KW

Max rapid travel rate

60000mm/min

Max working speed

30000mm/min

Spindle power (Linear or Disc)

water cooling spindle

Spindle speed

0-24000RPM

Spindle inverter

Fuling inverter

Working voltage

AC220V/50/60Hz,3PH

Command language

G Code

Operatiing system

nc-studio

Collet

 (3.175/4/6/12.7mm. Optional )

X,Y Resolution

<0.02mm

Software compatiliby

Type3/Artcam/Ncstudio/Ucancam/JDpaint etc software

Running environment temperature

0-45 centigrade

Relative humidity

30%-75%

Packing size

3650X2260X1630mm

G.W.

Approx. 2000kg

Mini order quantity

1 set

warranty

2 years

Delivery time and payment

7-20 days after get 30% payment by T/T(option:the third

 party alibaba ESCROW)

Optional parts

1.Vacuum pump(Germany Becker or chinese)

2.Rotary system

3.Dust collector

4.Sink and air cooling system

5.custom any size machine

Quality Control

1.Strect control machine assembly each link,ensure

the machine clean and beautiful.

2.48 hours continuous work before the machine

 leave the factory, ensure high quality of the machine.

After sales service

1.24 hour technical support by email, calling or MSN

2.Uer-friendly english manual and vedio for machine

using and maintaining.

3.Our machines obtain CE and ISO9001 certificate.

Machine configuration

Application

All kinds of stone processing / 3d processing ,such as ceramic tile , ceramic wall , marble, granite,
curtain wall, tobstone, stone wall, etc.
Can perfectly run in cutting and engraving , widely used in stone processing industry.

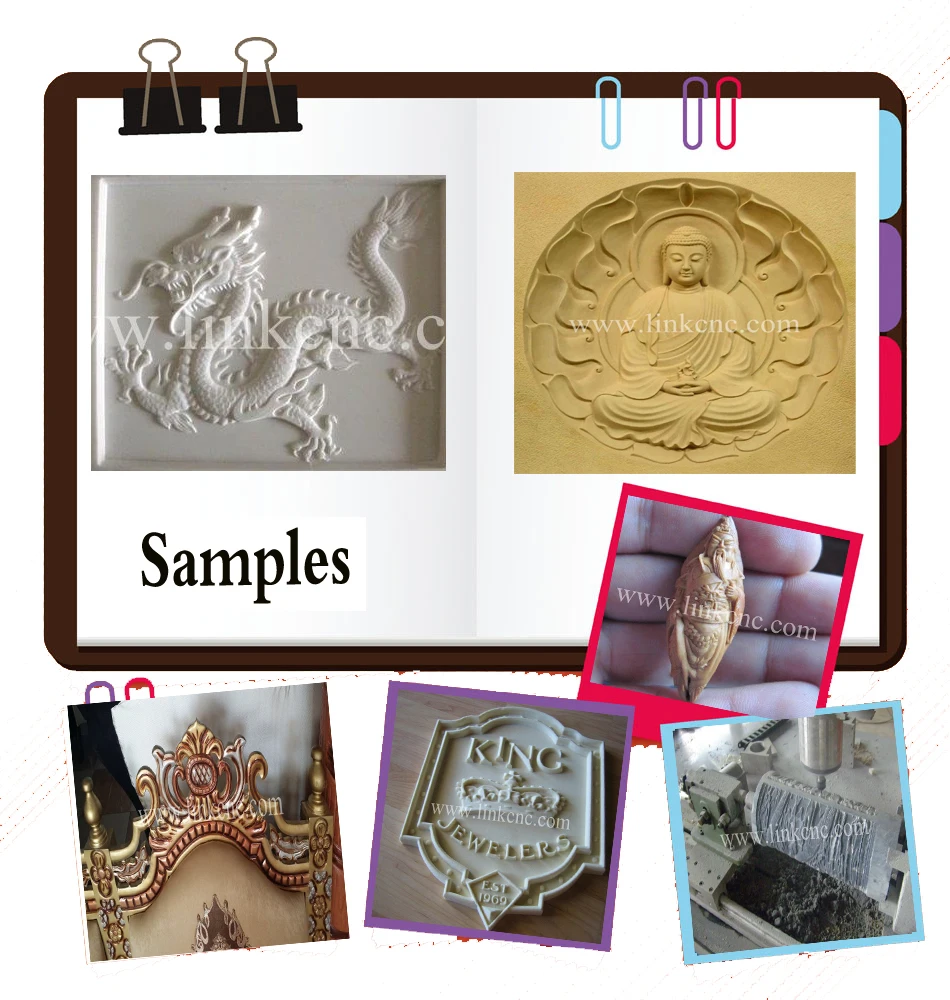

Samples
Packaging & Shipping



Our Services
1) 2 years warranty. Machine part can be changed for free if the machine part is broke.
2) Lifetime maintenance free of charge.
3) Free training course at our factory.
4) We will provide the consumable parts at an agency price when you need replacement.
5) 24 hours on line service each day, free technical support.
6) Machine has been adjusted before delivery. we will take machine photos and make machine working videos for you,after getting your agreement ,then we will book a ship.
7) Providing technical services to the door (we have professional engineers to offer machine installment on connissioning and maintenance)
8) If you have any problem during your use, you need our technician to judge where the problem is and help you to solve it. we can provide team viewer and skype to help you.

Company Information

 Jinan Link Manufacture & Trading Co.,Ltd.It is specialized in the production of CNC

woodworking equipment and CNC laser advertising equipment of high tech enterprises.Our

company sets research and development,production,sales,maintenance services as a whole,

specialized in manufactureing CNC woodworking engraving machine,CNC advertising,engraving,

machine,laser engraving/cutting machine,laser seals machine,computer cutting plotter series

equipment,and distribution of plasma cutting metal machine and so on.

Our certification

Our customers feedback

FAQ

Q1: How to get the most suitable model with competitive price?
A:Please tell me what’s material you want to cut or engrave.
And what’s Max size of the carved material? Do you mainly engrave or cut?
If cut, what is your Max cutting thickness?



Q2: Does machine comes with software?
We usually offer artcam software with machine, if you like, Type3, ArtCAM are also available.


Q3:How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and
customized machines according to clients’ specific requirement, it would be 15 to 30 days.


Q4: Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
contacting us

For more information just contact me!!!

Contact Tiffany
Tel:+86 15863381272
Foxmail:export02/@/linkcnc.com
Whatsapp:+86 15863381272
Skype:lingxiangcnc2
