New product ATC nesting cnc router for Kitchen or arcade cabinets production line 1325/cnc router bits

FOB Reference Price:Get Latest Price
$13,500.00 - $28,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LXM1325-D
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
JNLINK
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE ISO, CE,ISO
Weight (KG):
1500
Warranty:
2 years
After-sales Service Provided:
Field installation, commissioning and training
Key Selling Points:
Multifunctional
Applicable Industries:
Hotels, Machinery Repair Shops, Retail, Construction works , Advertising Company
Name:
cnc router for wood kitchen cabinet door
Spindle:
9.0kw air cooled spindle
Model:
LXM1325-D
Frame:
Heavy duty frame
Operating system:
Syntec
Color:
Required
Working table:
Vacuum table
Rails:
Square rails
Transmission:
Rack Gear
Supply Ability
Supply Ability:
150 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard plywood case
Port
qingdao port
Video Description

New product ATC nesting cnc router for Kitchen or arcade cabinets production line 1325/cnc router bits





24 hours online service for you,pls contact us.

Hathaway Deng
Whatsapp/mobile number/wechat+83 18366192824
Skypeexport16/@/linkcnc.com
E-mailexport16/@/linkcnc.com

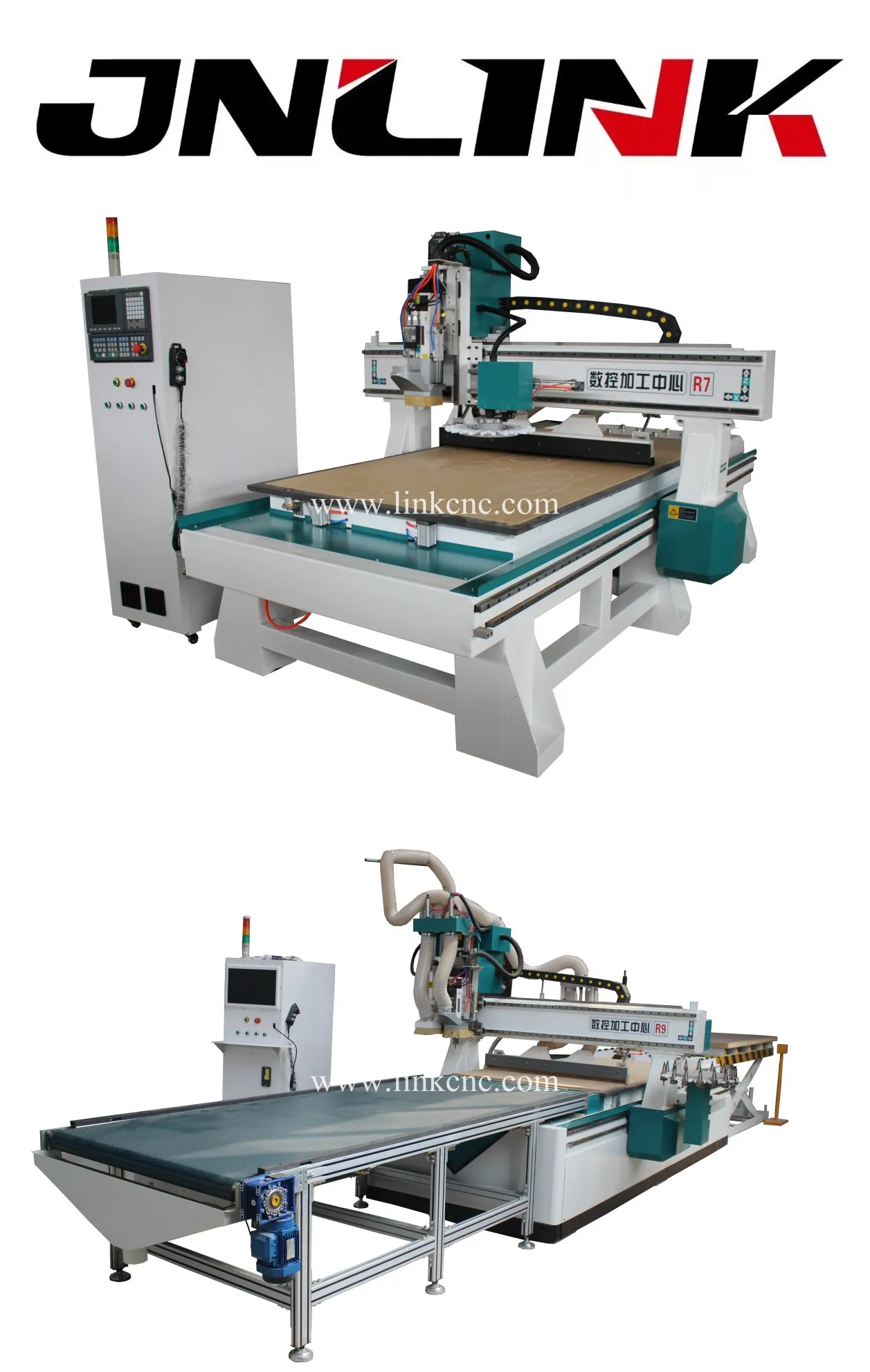

auto loading unloading 3d atc wood cnc router

Product Description

  Features auto loading unloading atc cnc router

(1)Perfect Function,automatic feeding,drilling,slot,cutting,automatic unloading in one step.

(2)Saving time and labor,materials,replace traditional CAD draftsmen,splitting worker,cutting worker,
only need 8 minutes to input size and design and split.Automatic layout optimization,improve material
utilization.High quantity,automatic design,automatic typesetting,no human intervention.minimizing error rate to
minimum,ensure the quality of the order.

(3)Automatic loading and unloading,saving labor.

(4)High efficiency:advanced automatic tool change program,without human intervention,program  automatically.

(5)Furniture Loading ATC nesting cnc router for Kitchen holes to suck tightly of the work piece,24 partition design,
strong adsorption materials of different area,greatly improve the work efficiency.

  Applications auto loading unloading atc cnc router

(1)Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and windows.



(2)The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.



(3)Plate processing: insulation part, plastic chemical components. PCB, inner body of car, bowing

 tracks, stairs, anti-bate board, epoxy resin, ABS, PP,PE and other carbon mixed compounds.



(4)Decorate industry: Acrylic, PVC, MDF, artificial, stone, organic glass, plastic and soft metals such

as copper, aluminum plate engraving and milling process.

  Parameters auto loading unloading atc cnc router

Model

LXM1325-D with 12 pieces atc tools



Working travel

X axis

1300mm

Y axis

2500mm

Z axis

200mm

Table structure

Vacuum table with 7.5kw vacuum water pump

orbit

Taiwan PMI rails or TE

Transmission type

German X,Y Rack, Z Ball Screw

Repositioning accuracy

±0.05

Working accuracy

±0.05

Max idle running speed

25000mm/min

Max working speed

12000mm/min



Spindle parameters

Type of cooling

 Air cooling spindle

power

9.0kw

speed

0-18000r/min

 Auto loading system

 Yes , with the red light signal system

 Auto unloading system

 Yes , with the dust collector system

 Pneumatic position system

 Yes ,to guide the panel wood

inverter

SIMPHOENIX inverter(optional fuling or delta)

Drive system

750w YASKAWA servo motor+Janpan SHIMPO reducer

Command code

G code

Control system

Nc

software

CV

Oiling system

Automatic

Collect

Dust collector 7.5kw

Working voltage

3 phase AC380V/50HZ

Important

Positioning cylinder,gang drill,auto loading unloading system

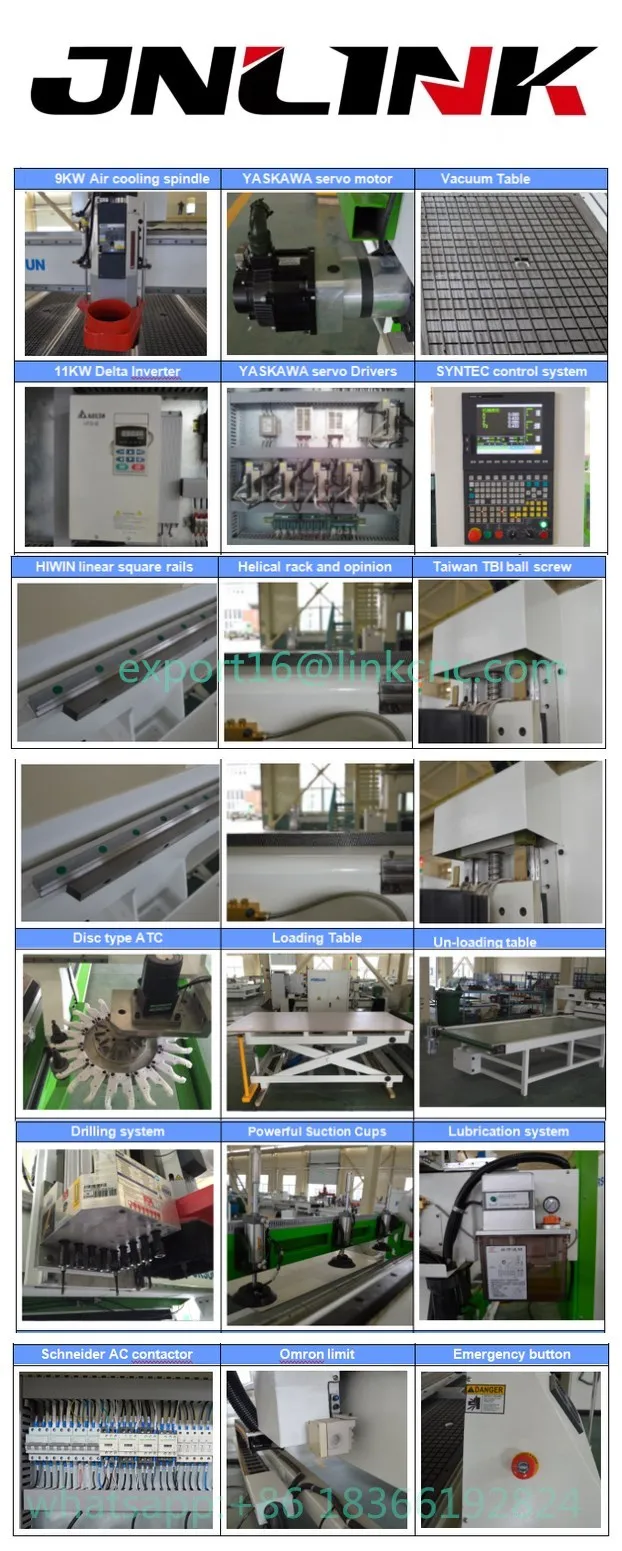

  Parts auto loading unloading atc cnc router
   Videos auto loading unloading atc cnc router
 https://www.youtube.com/watch?v=s5_Lno6_7FM
Packaging & Shipping
Package: Wooden case or as your requiremen.

Delivery:Sea,truck,train or air.
